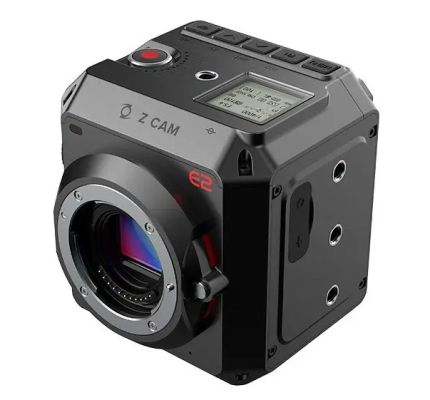

Z-CAM E2 4K Cinema Kamera

Artikelnr.: 1000007816

4/3"WDR CMOS|10.28MP / 4K 160p / FHD 240p / MFT Mount / CFast 2.0 slot (1x)

Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Z-CAM E2 4K Cinema Camera
Sofort lieferbar. Versandbereit in 1-3 Werktagen.
2.499,00 € 1.904,00 € 1.600,00 €

Z CAM E2 Professional 4K Cinema Kamera

Z CAM ist eine erfrischend neue Kameramarke, die von einem Team innovativer und kreativer Entwickler mit Visionen erdacht wurde die sich leistungsfähiger, hochmoderner Imaging-Produkte und -Lösungen verschrieben haben.

Ein mitgelieferter Gigabit-Anschluss ermöglicht die Datenübertragung und Steuerung der Kamera. Sie können auch eine verfügbare iOS-App verwenden, um die Kamera zu steuern um eine Livebildvorschau anzuzeigen. Die Kamera wird über einen Akku der L-Serie (nicht im Lieferumfang enthalten) oder über das mitgelieferte Netzteil mit Strom versorgt.

Leistungsmerkmale:
• 4K @160fps*, 10-bit color
• 4/3" WDR CMOS Sensor
• 13~15 stops dynamic range (16 stops WDR enabled)
• ZRAW (partial debayer)
• Apple ProRes zertifiziert
• Gigabit Ethernet für Daten, Kontrolle & Live Streaming**
• Multi-Cam Synchronisierung***

*4K 2.4:1 (3840x1620) resolution
**Requires Z CAM software running on PC
**Requires Z CAM E2 sync cable (not included)



Technische Daten

Kamera Merkmale
Sensor Typ
4/3" WDR CMOS Sensor
Sensor Größe
19.0 x 13.0 mm
Effective Pixels
10.28M
Dynamic Range
13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount
Micro Four Thirds
Microphone
Built-in Stereo Microphone

Recording
Resolution
4096 x 2160 (C4K) / 3840 x 2160 (4K)
4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
3696 x 2772 / 3312 x 2760
2704 x 1600 / 1920 x 1080
Frame Rate
59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
Max Variable Frame Rate
120 fps for 4096 x 2160 (H.265 only)
120 fps for 3840 x 2160 (H.265 only)
150 fps for 4096 x 1728 (H.265 only)
160 fps for 3840 x 1620 (H.265 only)
160 fps for 2704 x 1600 (H.265 only)
59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
240 fps for 1920 x 1080 (H.265 only)
* Please refer to “Appendix 1” for more detail of the max frame rate for different encoders.
Max Bit Rate
H.265 / H.264
300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
200 Mbps for 1920 x 1080
ProRes
Please check “Apple ProRes White Paper” for the bit rate of ProRes encoding.
Color Bit Depth
12-bit ProRes Raw / ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
Video Encoder
ProRes Raw, ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
Audio Format
24-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video

Settings
ISO
Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
Shutter
Shutter Speed: Auto, Manual (up to 1/8000”) or
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness
Image Profile
Rec.709 / Z-Log2 / FLAT / HLG
Audio
Audio In / Out Level
Time Code
Current Time / Manual Input / External Input

Storage
Media
CFAST 2.0
File System
exFAT

Connectivity
HDMI
HDMI 2.0 Type A (video output up to C4K @60fps)
USB
USB 3.0 Type C for camera control & data transfer only
I/O
10-pin LEMO port for synchronization (requires additional Sync Cable, not included)
COM
DB-9 connector, supports RS-232
Remote Control
2.5 mm jack socket (Sony LANC compatible)
Audio-in
3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
Audio-out
3.5 mm stereo jack socket
Wi-Fi
802.11n, 2.4G with external antenna port
Ethernet
Gigabit Ethernet port for control, setting & live streaming


Power
Battery
Sony NP-F series compatible (Battery not included)
External Power Supply
DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter

Physical
Material
Aluminum Alloy
Weight
757 g (without lens)
Dimensions (W x H x D)
91.2 mm x 99.2 mm x 89.1 mm (without lens)

Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C


Disclaimer: All product features and technical specifications stated are subjected to Z CAM ‘s sole interpretation and explanation. Product specifications reflect both current and projected information. Everything is subject to change.
